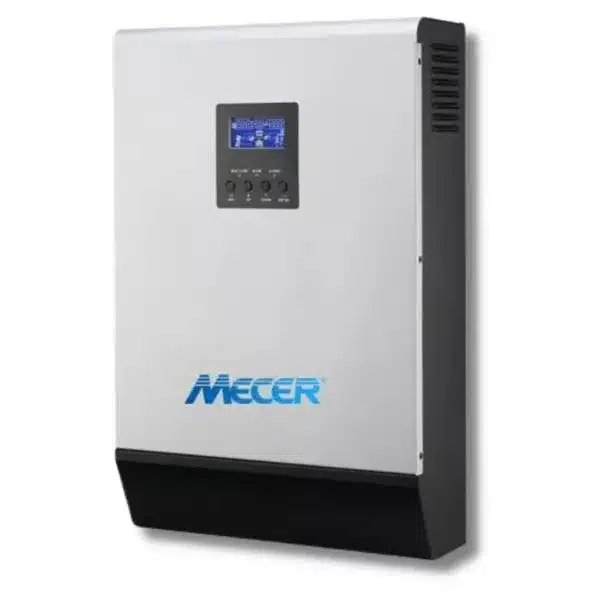

Mecer 3Kw 24V Pwm 1200W

FEATURES

Pure sine wave inverter
• Output power factor 1
• Selectable input voltage range for home appliances and personal computers
• Selectable high-power charging current
• Configurable AC/Solar input priority via LCD setting
• Compatible to mains or generator power
• Auto restart while AC is recovering
• Battery equalization for optimized battery performance and lifecycle
• Cold start function

Rated Power 3000VA/3000W
Parallel Capability None
Input
Voltage 230V AC
Selectable Voltage Range 170-280V AC (For Personal Computers)
90-280V AC (For Home Appliances)
Frequency Range 50Hz / 60Hz (Auto sensing)
Output
AC Voltage Regulation (Batt Mode) 230V AC ±5%
Surge Power 6000VA
Efficiency (Peak) 90-93%
Transfer Time 10ms (Personal computers) ; 20ms (Home appliances)
Waveform Pure sine wave
Battery
Battery Voltage 24V DC
Floating Charge Voltage 27V DC
Overcharge Protection 33V DC
Solar Charger & AC Charger
Type of solar charge controller PWM
Maximum PV Array Power 1200W
PWM Range @ Operating Voltage 30-32V DC
Maximum PV Array Open Circuit Voltage 80VDC
Maximum Solar Charge Current 50A
Maximum AC Charge Current 25A
Maximum Charge Current 70A
Physical
Dimensions D X W X H 100 X 285 X 334
Net Weight (kgs) 6.3kg
Communication Interface USB/RS232
Environment
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature -10°C to 50°C
Storage Temperature
