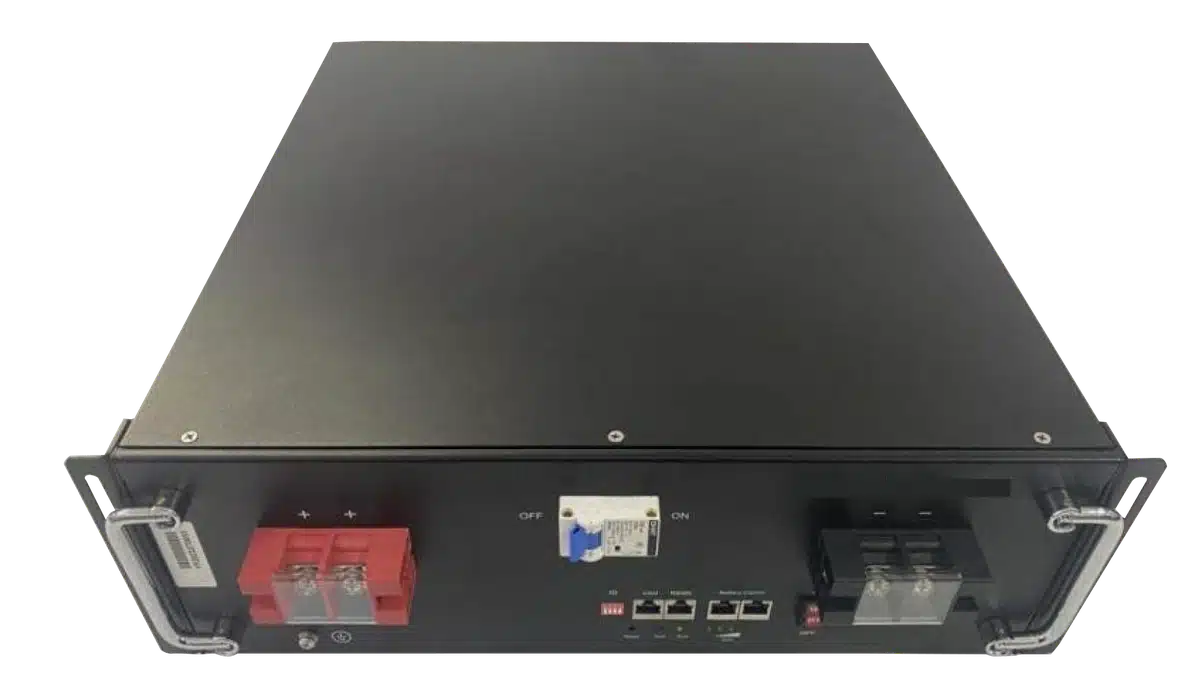

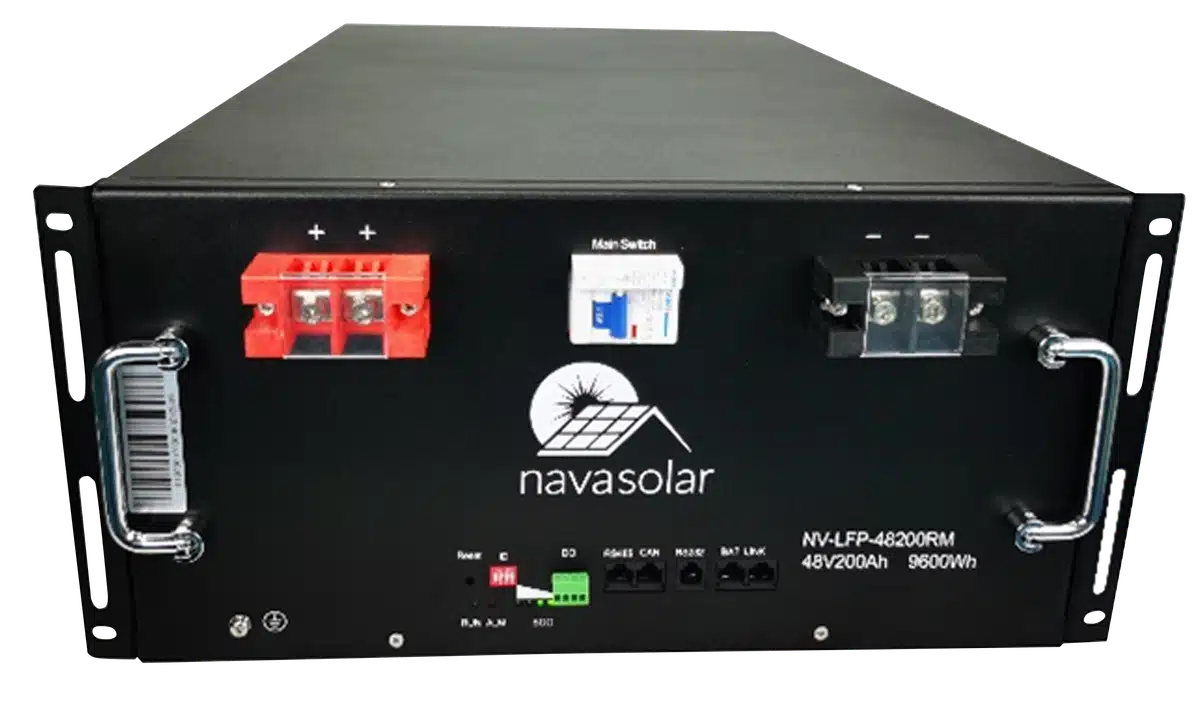

Navasolar 48V 200AH LIFEPO4 RM Battery With BMS

FEATURES

Navasolar PV1800 PRO 5.2KW 48V Offgrid Solar Inverter 80A MPPT – NV-MV5248PRO – https://www.takealot.com/navasolar-pv1800-pro-5-2kw-48v-offgrid-solar-inverter-80a-mppt/PLID92754556

or

Navasolar PH1800 10KW 48V Hybrid Solar Inverter 80A MPPT – NV-MH10048 – https://www.takealot.com/navasolar-ph1800-10kw-48v-hybrid-solar-inverter-80a-mppt/PLID92756010

Battery Supports all Inverters but BMS Functions set for NavaSolar

Description

Lithium Iron Phosphate Energy Storage

Battery Data

Model: NV-LFP-48200RM

Nominal Voltage: 48V

Normal Capacity: 9.6kWh

Usable Capacity: 9kWh

Operating Voltage: 42.5 ~ 54V

Rated Charging Current: 40A (100A Max)

Rated Discharging Current: 100A

Max. Discharging Power: 4.2kW

Max Charging Power: 5.4kW

General Data

Dimension (W/D/H): 483/680/225mm

Weight: 78Kg

IP Protection: NA

Working Temperature: 0 C~+45 C

Storage Temperature: -10 C~+30 C

Features

DOD: 80%

Cycle Life: >4000 times

Parallel Connection: Max.16packs

Communication Port: CAN/RS485
