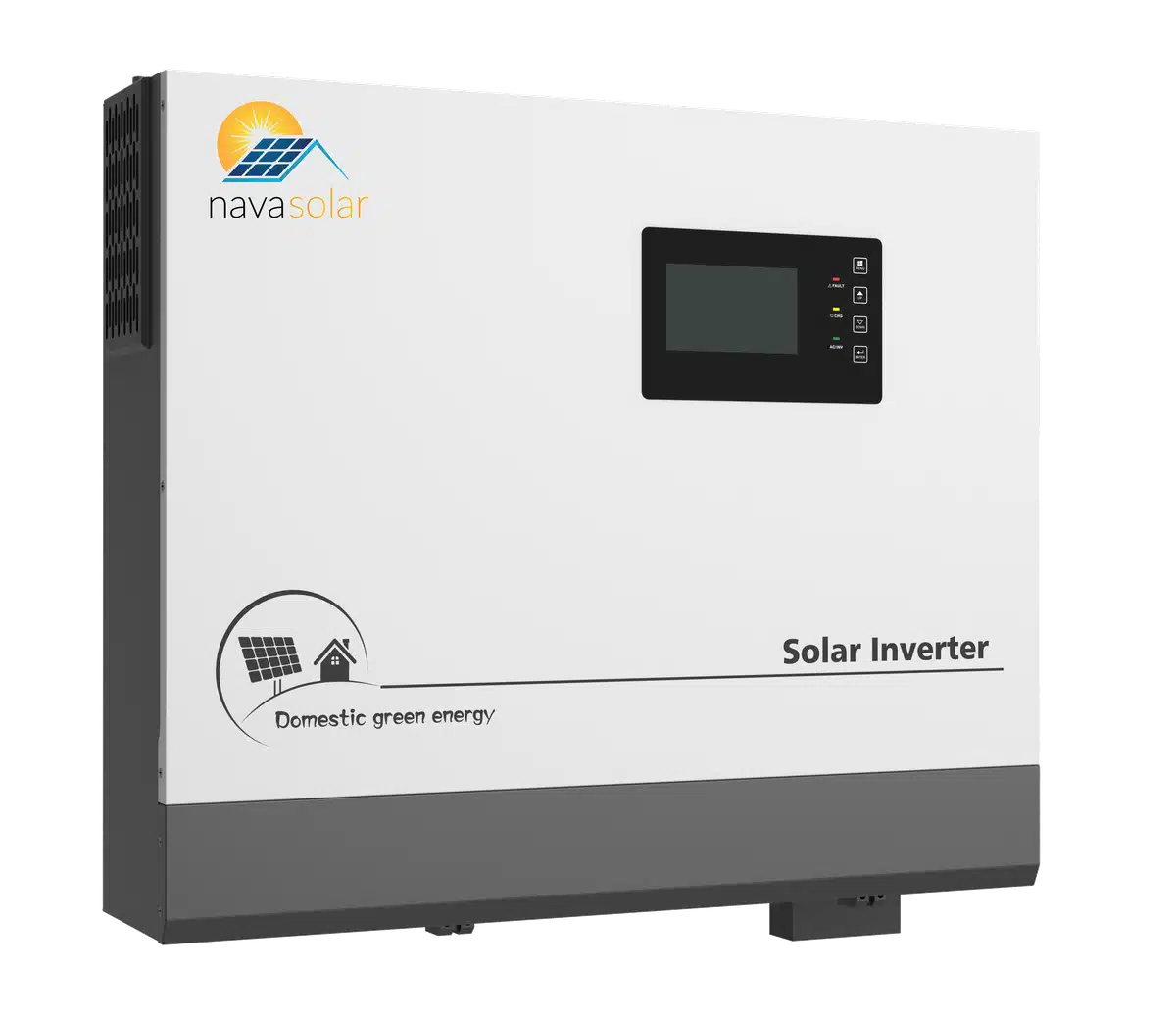

Navasolar PH1800 10KW 48V Hybrid Solar Inverter 80A MPPT

FEATURES

Model: MV-MH10048
Nominal Battery System Voltage: 48VDC
Parallel Capability: No
Operation Without Battery: No

Inverter Output
Rated Power: 10 000W
Surge Power: 20 000W
Wave form: Pure Sine Wave
AC Voltage Regulation (Batt.Mode): (230VAC) 5%
Inverter Efficiency (Peak): 93%
Transfer Time: 10ms (typical)

AC Input
Voltage: 230VAC 5%

Selectable Voltage Range:
170~280VAC (for Personal Computer)
90~280VAC (for Home Appliance)
84~253VAC (VED4105)

Frequency Range: 50Hz/60Hz (Auto sensing)

Battery:
Normal Voltage: 48VDC
Floating Charge Voltage: 54.8VDC
Overcharge Protection: 60VDC

Solar Charger & AC Charger
Maximum PV Array Open Circuit Voltage: 145VDC
PV Array Voltage Range: MPPT 60~130VDC
Standby Power Consumption: 2W
Maximum PV lnput Power: 4000Wx2
Maximum Solar Charge Current: 80A
Maximum Efficiency: 98%
Maximum AC Charge Current: 120A
Maximum Charge Current: 280A

Communications
USB/RS232/RS485(optional)

Mechanical Specifications:
Machine Dimensions (HWD)(mm): 355272100
Package Dimensions (HWD)(mm): 390425215
Net Weight (kg): 7.4
Gross Weight (kg): 9.5
