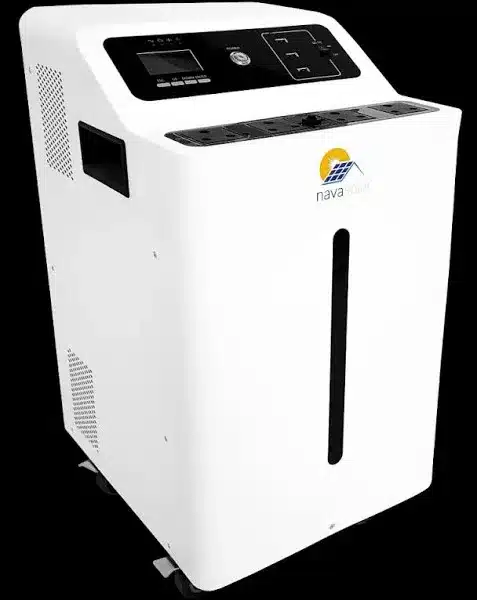

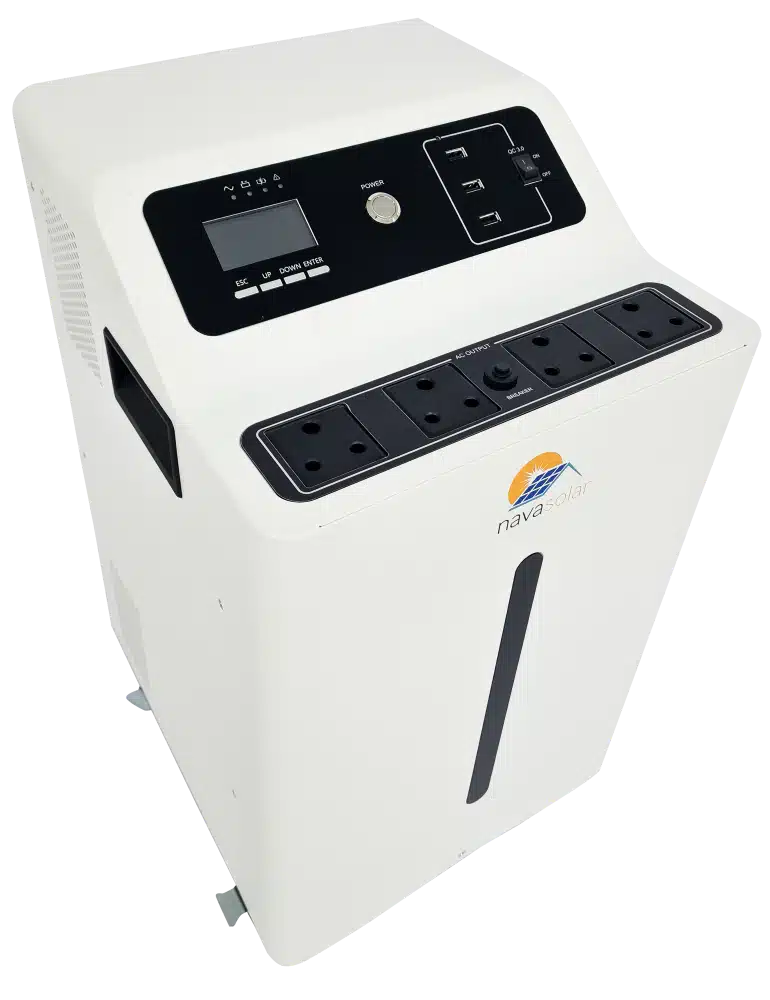

Navasolar TI-3052 Trolley Inverter 3KW/5.12KWH Lithium Battery

FEATURES

Model: NV-TI-3052
Rated Inverter Power: 3000VA/3000W

Input:
Voltage: 230Vac+-5%
Voltage Range: 154-264Vac
Frequency Range: 40-70Hz
AC Input Connection: IEC C20
PV Input Connection: PP75

Output:
AC Voltage Regulation (Batt. Mode): 230VAC+-5%
Surge Power: 3000VA
Efficiency (Peak): 93.50%
Transfer Time: 20 ms (Typical)
Waveform: Pure Sine Wave
Output Type: 4 x AC Outlets, 2 x USB PD Ports (QC3.0)

Solar Charger and AC Charger:
Solar Charger Type: MPPT
Maximum PV Array Power: 1500W
Maximum PV Array Open Circuit Voltage: 30-115Vdc
Maximum Solar Charge Current:60A
AC Charge Current: 40A
Maximum Charge Current: 100A

Battery:
Capacity: 5120Wh (25.6V 200Ah)
Nominal Voltage: 25.6Vdc
Charging Voltage: 27.6V
Max Continuous Discharging Current: 100A

Communication:
Communication Ports: USB/RS232 (Baud Rate2400)

Protection:

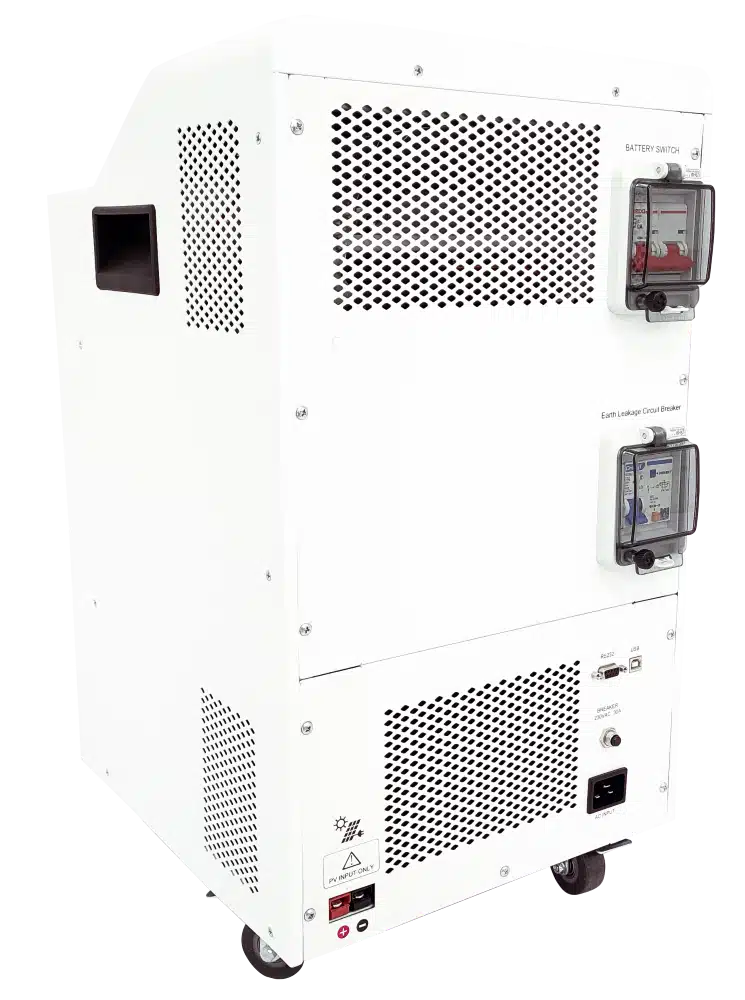

Protection Type: AC Input/Output Breakers, Battery Switch, Earth Leakage Circuit Breaker

Environment:
Humidity: 20%-95% (No Condensing)
Storage Temperature: -15 – 60
Operation Temperature: 0 – 40

Physical:
Dimension (net), D x W x H (mm): 330x380x605
Dimension (package), D x W x H (mm): 465x385x677
Net Weight (kg): 56.94
Gross Weight (kg): 58.85

What’s in the box
1 X NV-TI-3052 Inverter Trolley
