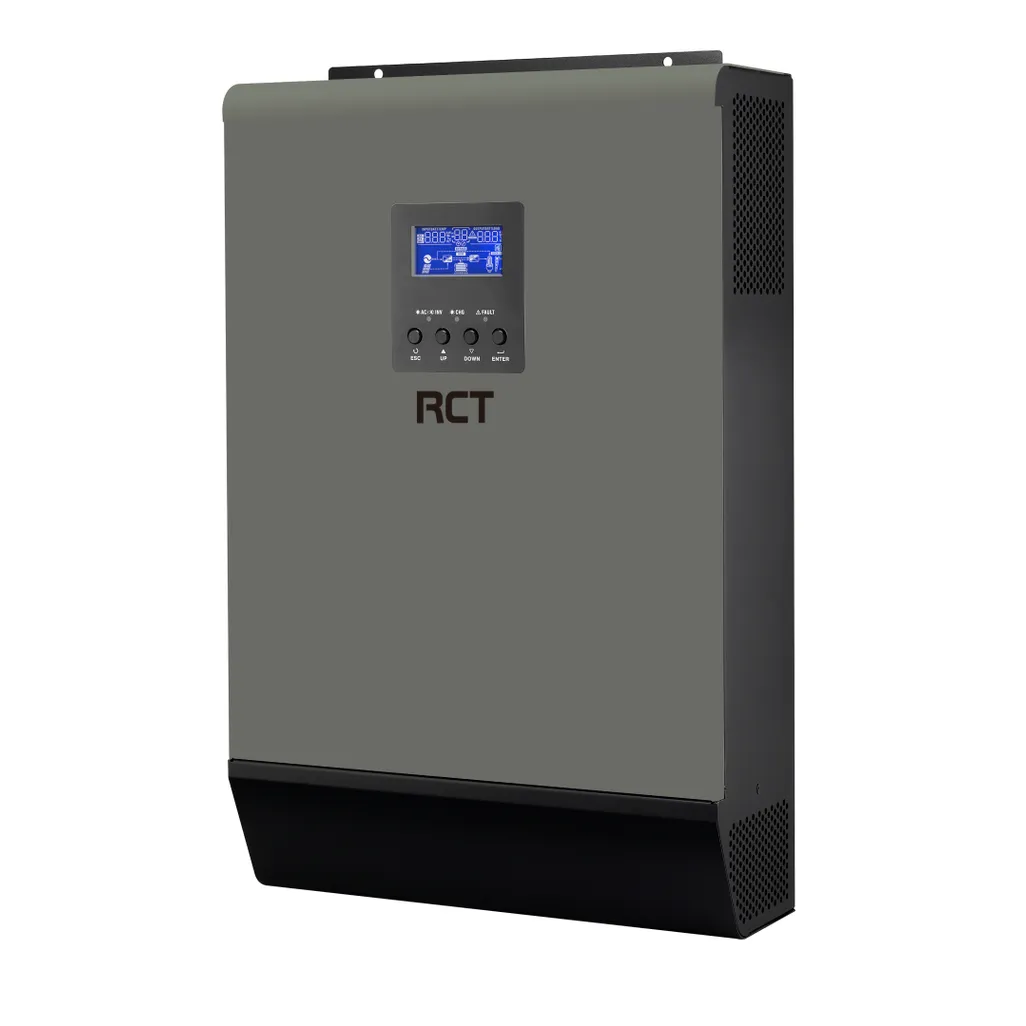

RCT AXPERT 5K MK2 5000VA/5000W INVERTER 48V DC WITH 4500W 450VDC MPPT CHARGER AND PARALLEL KIT.

FEATURES

Axpert MKS II 5KVA with MPPT solar charger

Axpert MKS is equipped with MPPT solar charge controller to maximize and regulate DC power from the solar array for charging

the battery bank. Transformerless design provides reliable power conversion in compact size. Besides, its worry-free to start up

motor-type loads such as refrigerators, motors, pumps, compressors and laser printers as well as electronic loads like TVs,

Computers, power tool and battery chargers.

Features:

Pure sine wave inverter

Output power factor 1 (only 0.8 for 3KP/5KP Models)

Built-in battery equalization function to extend battery life cycle

Built-in MPPT solar charge controller

Selectable input voltage range for home appliances and personal computers

Selectable charging current based on applications

Configurable AC/Solar input priority via LCD setting

Compatible to mains voltage or generator power

Battery equalization for optimized battery performance and lifecycle

Parallel operation with up to 9 units only available for Axpert MKS 3KP/4KVA/5KVA*



Specifications:

Product Code RCT-AXPERT 5K MK2

Model Axpert MKS II 5K

Rated Power 5000 VA / 5000 W

Parallel Capability Yes, 9 units

INPUT Voltage 230 VAC

Selectable Voltage Range 170-280 VAC (For Personal Computers), 90-280 VAC (For Home Appliances)

Frequency Range 60/50 Hz (Auto sensing)



OUTPUT

AC Voltage Regulation (Batt. Mode) 230 VAC ± 5%

Surge Power 10000 VA

Efficiency (Peak) 90%

Transfer Time 10 ms (For Personal Computers), 20 ms (For Home Appliances)

Waveform Pure Sine Wave



BATTERY



Battery Voltage 48 VDC

Floating Charge Voltage 54 VDC

Overcharge Protection 66 VDC

SOLAR CHARGER & AC CHARGER

Maximum PV Array Open Circuit Voltage 450 VDC

Maximum PV Array Power 4500 W

MPPT Range @ Operating Voltage 120 VDC~430 VDC

Maximum Solar Charge Current 80A

Maximum AC Charge Current 80A

Maximum Charging Current 80A



PHYSICAL Dimension, D X W X H (mm) 120 x 295 x 468

Net Weight (kgs) 11

OPERATING ENVIRONMENT

Operating Humidity 5% to 95% Relative Humidity(Non-condensing)

Operating Temperature 0°C to 55°C

Storage Temperature -15°C to 60°C
