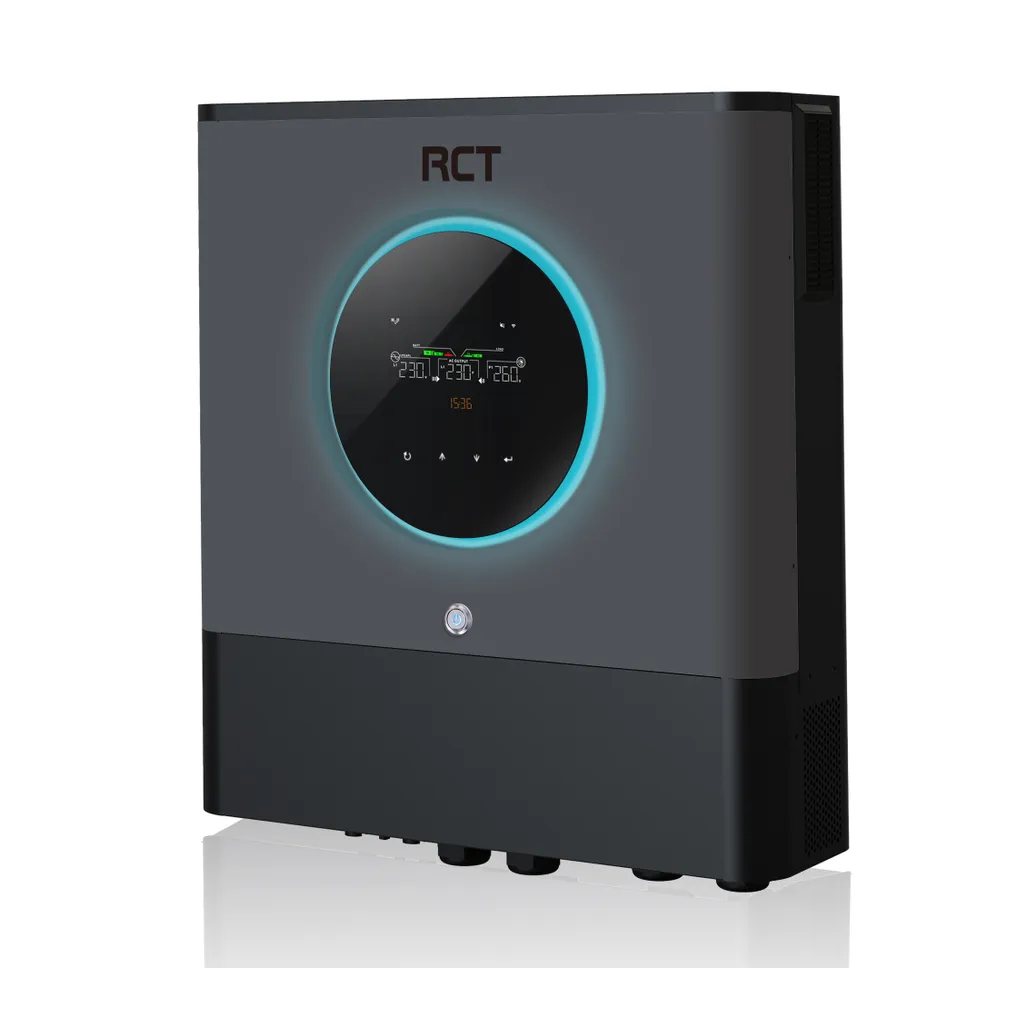

RCT Axpert Mx2 11kva/11kw Inverter 48v 2x5500w Mppt Bulit in Bms & Wifi (RCT-AXPERT MX2 11K48V)

FEATURES

– Configurable ac / pv output usage timer and prioritization.
– Compatible to utility mains or generator input.
– Parallel operation with 6 units.

– Status indication with rgb lights.
– Built-in wi-fi for mobile monitoring (android / ios app is available).
– Supports usb on-the-go function.
– Reserved communication port for bms (rs485, can-bus or rs232).
– Replaceable fan design for ease of maintenance.
– Battery independent design.
– Configurable ac / pv output usage timer and prioritization.
– Selectable high power charging current.
– Selectable input voltage range for home appliances and personal computers.
– Compatible to utility mains or generator input.
– Built-in anti-dust kit.
– Built-in dc output for dc fan, led bulb, router and so on.
– Parallel operation with 6 units.

Rated power     11000va / 11000w
Parallel capability     yes, 6 units
Input
Voltage     230 vac
Selectable voltage range     170-280 vac (for personal computers)
90-280 vac (for home appliances)

Output
Ac voltage regulation (batt. Mode)     230vac ± 5%
Surge power     22000 va
Efficiency (peak)     93%
Transfer time     15 ms (for personal computers); 20 ms (for home appliances)
Waveform     pure sine wave

No load power consumption     < 70w
Dc voltage     12 vdc ± 5%, 100w
Battery
Battery voltage     48 vdc
Floating charge voltage     54 vdc
Overcharge protection     63 vdc
Solar charger & ac charger
Solar charger type     mppt

Maximum pv array power     11000 w (5500 w x 2)
Mpp range @operating voltage     90~450 vdc
Maximum pv array open circuit voltage     500 vdc
Maximum solar charge current     150a
Maximum ac charge current100a     150a
Maximum charge current     150a
