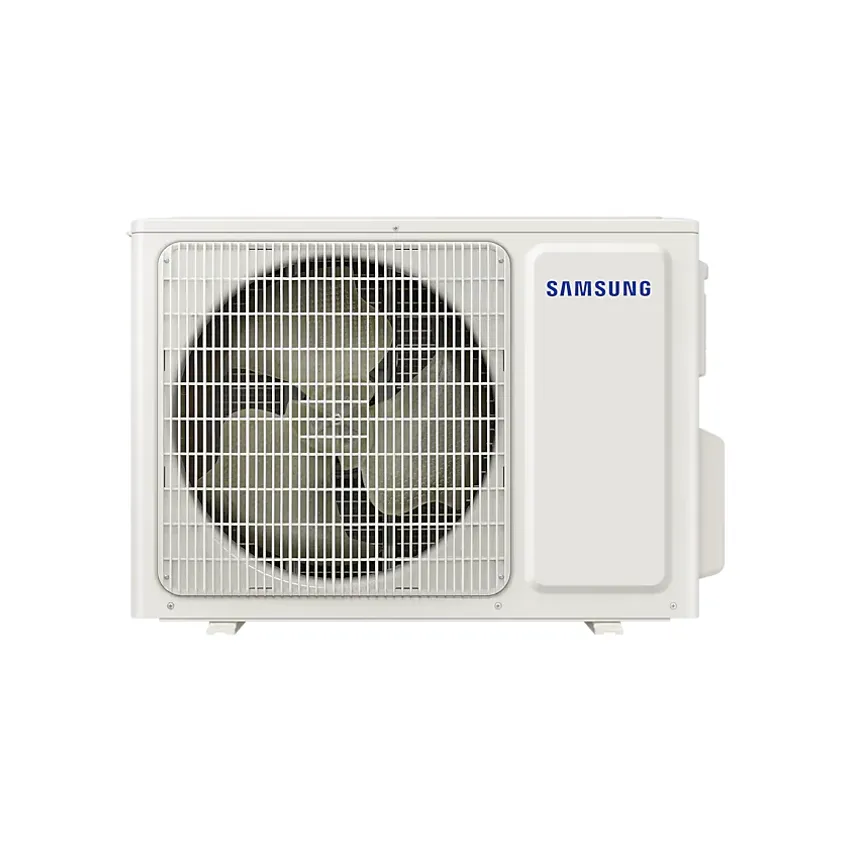

SAMSUNG INVERTER AR4500 18 000 BTU WALL-MOUNT AIR CONDITIONER

FEATURES

Capacity

• • • Capacity (Cooling, Btu/hr): 16003
    • Capacity (Heating, Btu/hr): 17999
    • Capacity (Cooling, Min – Max, Btu/hr): 5732 – 19210
    • Capacity (Heating, Min – Max, Btu/hr): 5323 – 22280
    • Capacity (Cooling, kW): 4.69
    • Capacity (Heating, kW): 5.28
    • Capacity (Cooling, Min – Max, kW): 1.68 – 5.63
    • Capacity (Heating, Min – Max, kW): 1.56 – 6.53

Energy Efficiency

• • • EER (Cooling, W/W): 3.01
    • COP (Heating, W/W): 3.20
    • EER (Cooling, Btu/hW): 10.27
    • COP (Heating, Btu/hW): 10.91

Noise Level

• • • Noise Level (Indoor, High/Low, dBA): 41 / 34
    • Noise Level (Outdoor, High/Low, dBA): 53

Electrical Data

• • • Power Source(Φ/V/Hz): 1 / 220~240 / 50
    • Power Consumption(Cooling, W): 1558
    • Power Consumption(Heating, W): 1650
    • Operating Current(Cooling, A): 9.00
    • Operating Current(Heating, A): 8.50

Physical specification

• • • Gross Dimension (Indoor, WxHxD, mm*mm*mm): 1041 × 320 × 383
    •  Gross Dimension (Outdoor, WxHxD, mm*mm*mm): 948 × 645 × 420
    •  Net Dimension (Indoor, WxHxD, mm*mm*mm): 970 × 300 × 224
    •  Net Dimension (Outdoor, WxHxD, mm*mm*mm): 899 × 596 × 378
    •  Gross Weight (Indoor, kg): 16.5
    •  Gross Weight (Outdoor, kg): 43.0
    •  Net Weight (Indoor, kg): 14.0
    •  Net Weight (Outdoor, kg): 40.0
    •  Loading Quantity (20/40/40Hft without Pipe): 75 / 156 / 179

Technical Information

• • • Piping Length (Max, m): 20
    •  Piping Height (Max, m): 10
    •  SVC Valve (Liquid (ODxL)): φ6
    •  SVC Valve (Gas (ODxL)): φ12
    •  Moisture Removal (l/hr): 2.00
    •  Air Circulation (Cooling, m/min): 800
    •  Refrigerant (Type): R410A
    •  Low Ambient (Cooling, ℃): 18 ~ 43
    •  Low Ambient (Heating, ℃): -7 ~ 24

Air Flow

• • • Air Direction Control (Up/Down): Auto
    •  Air Direction Control (Left/Right): Manual
    •  Air Flow Control Step (Cool/Fan): 3 Step

Convenience

• • • Indoor Temp. Display – Yes
    •  Display On/Off – Yes
    •  24-Hour Timer – Yes
    •  Auto Restart: – Yes

Operating Mode

• • Fast Cool – Yes
  •  Good Sleep – Yes
  •  Dehumidification – Yes
  •  Fan Mode – Yes
