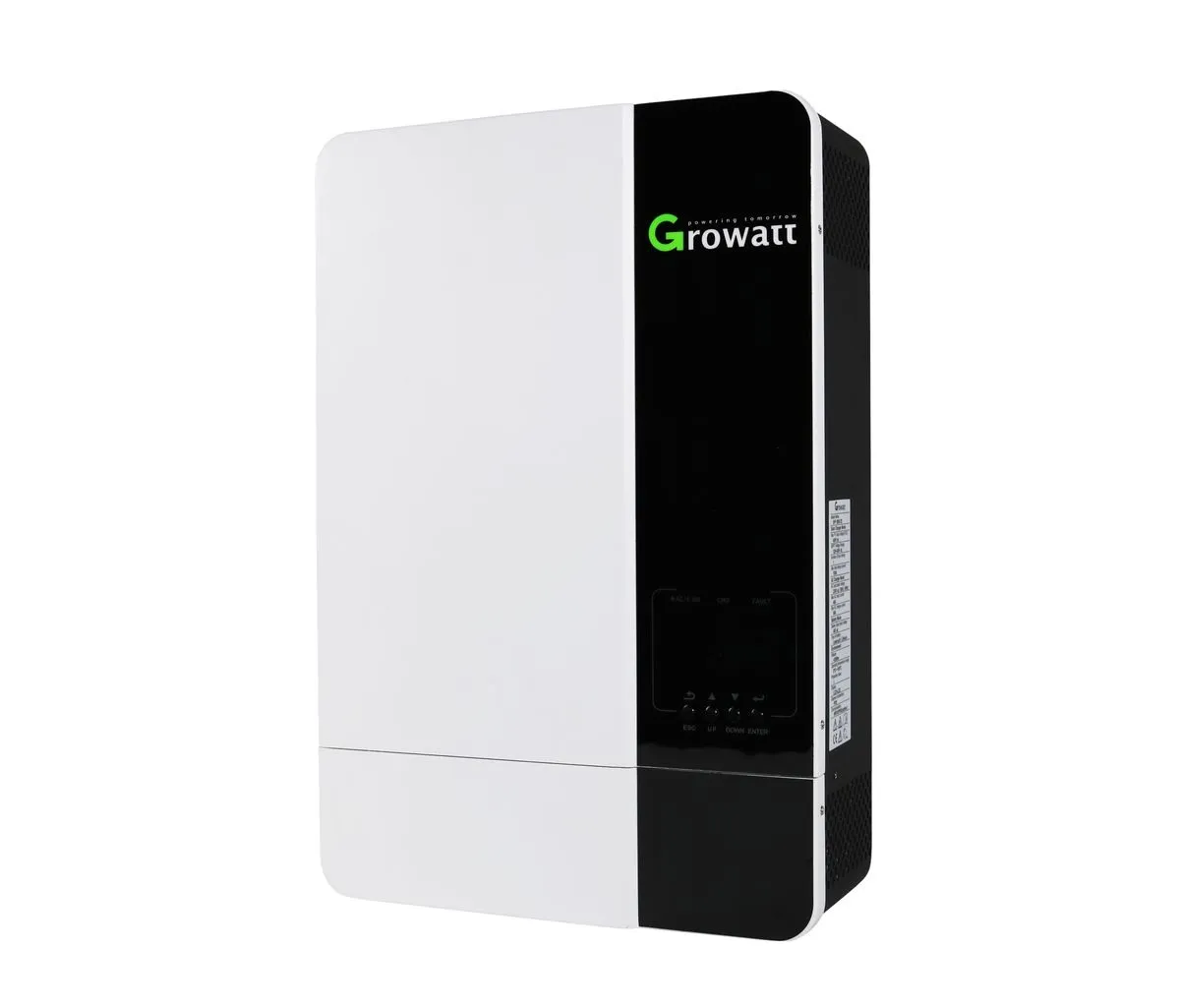

GROWATT OFFGRID 48V 5KW SOLAR INVERTER 1 (WIFI MODULE)

FEATURES

Integrated MPPT charge controller for efficient solar power conversion
Equalization charging function to prolong battery life
Can work with or without a battery
Maximum PV input voltage of up to 450VDC
Configurable grid or solar input priority
Optional WIFI/ GPRS remote monitoring for convenience and ease of monitoring
Support parallel operation for capacity expansion up to 30kW
PV and Grid power the load jointly if PV energy insufficient
Flexibly schedule the Inverter charging and discharging time

Specifications:

Battery Voltage: 48VDC
Battery Type: Lithium/Lead-acid
INVERTER OUTPUT: Rated Power of 5000VA/ 5000W and a surge power of 7000VA 10000VA
Parallel Capability: Yes, 6 units maximum
AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz
Efficiency (Peak): 93%
Waveform: Pure sine wave
Transfer Time: 10ms typical, 20ms Max
SOLAR CHARGER: Maximum PV Array Power of 4500W 6000W, MPPT Range @ Operating Voltage of 120VDC ~ 430VDC, Number of Independent MPP Trackers/ Strings Per MPP Tracker of 1/1, Maximum PV Array Open Circuit Voltage of 450VDC, Maximum Solar Charge Current of 100A
AC CHARGER: Charge Current of 80A, AC Input Voltage of 230 VAC, Selectable Voltage Range of 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances), Frequency Range of 50Hz/60Hz (Auto sensing)
PHYSICAL: Protection Degree of IP20, Dimension (W/H/D) of 330/485/135mm, Net Weight of 11.5kgs 12kgs
OPERATING ENVIRONMENT: Humidity of 5% to 95% Relative Humidity(Non-condensing), Altitude of

The GROWATT OFF GRID 48V 5KW SOLAR INVERTER with 100A SOLAR CHARGER and WIFI MODULE is a powerful and reliable solution for off-grid solar power. With its many features and advanced specifications, it is designed to provide efficient and reliable power for both residential and commercial applications.

What’s in the box
1 x Growatt Off-Grid 48V 5KW/5000VA Solar Inverter with 100A Solar Charger
